12 Volt 3.5amp Switching Power Supply Adapter Short Circuit / Overload Protection

Ask Lasest Price
Brand Name :	YHY
Model Number :	YHY-12003500
Supply Ability :	450,000 PCS/month
Price :	Negotiable
Certification :	UL/cUL/FCC/GS/CE/EMC/PSE/3C/MEPS/BSMI/RCM/KC CEC/Energy Star/Doe vi/CP65
Payment Terms :	T/T, Western Union,Paypal
Delivery Time :	12-14 workdays after receipt of your oder

Add to Cart

Product Details
Company Profile

12 Volt 3.5amp Switching Power Supply Adapter Short Circuit / Overload Protection

12 volt 3.5amp Switching Power Supply Adapter 40w dc 12v 3.5a power supply AC DC UL CUL DOE VI approved LED LIGHTING

Product Description

Features:

Meet Efficiency Level VI requirements
Universal AC Input / Full range 100-240V
No Load power consumption ≤0.21W
2-3 pole AC Inlet IEC320-C14/C8/C6
Class I Power
Protection:Short circuit/ Overload
Fully enclosed plastic case
LED indicator (Blue) for power on

Specifications:

Input Voltage Range	100-240Vac 50/60Hz
Inrush Current	110VAC, 25℃
Input Current(Max)	2.0A(100VAC Input)
Power Factor	Meets EN61000-3-2
Safety Agency Certifications	UL60950-1, EN609501-1, IEC60950-1, CE Mark
Off-Load Power Consumption	<210mV
Conducted & Radiated EMI	EN55023-B, FCC Class B
AC cable	AU UK EK EU US
Weight	280g
Size(WxLxH)	115x50x30mm
Cable Length and Thickness	1200mm
AC Input Connector	IEC 320-C6 / IEC 320-C8/ IEC 320-C14
Output Connector	5.5x2.1mm (Accept more request)
MTBF 100%, 25℃	50,000 hours
Warranty	3 years

Output Ratings
Model	Output	Output Max.	Power Max.	DOE VI
Model	(V)	(A)	(W)	DOE VI
YHY-09005000	9	5	45	√
YHY-10005000	10	5	50	√
YHY-12005000	12	5	60	√
YHY-15004000	15	4	60	√
YHY-18003300	18	3.3	60	√
YHY-19003200	19	3.2	60	√
YHY-20003000	20	3	60	√
YHY-24002500	24	2.5	60	√
YHY-3002000	30	2	60	√

Key Market Segments & Applications:

We have DC 5-36V AND, 0.1A-10A, 3W-120W adapters.Lead Trend IC,YHY uses world famous brand IC from leadtrend who is an industry leader,Applied to LED, LCD, guitar, Voice robot, POS machine, printer, toy car, Smart home, loudspeaker, Battery, massager, wireless microphone, LED Showcase, toy plane, massager, laptop etc.

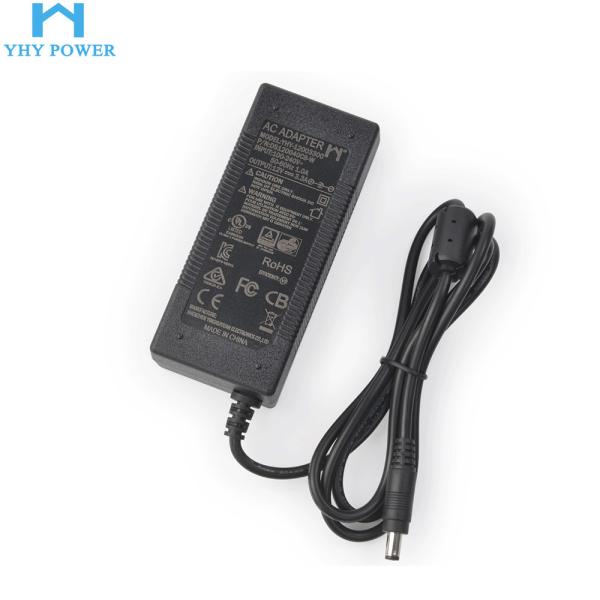

Detailed Images

Dear Customers, Welcome to Shenzhen Yinghui Yuan Electronic Co.,Ltd

12 Volt 3.5amp Switching Power Supply Adapter Short Circuit / Overload Protection

Desktop AC Power Adapter

-100-240VAC Universal Input Range

-Meets Doe Efficiency Level VI

-Desktop Styles

-Single Output

-Regulated Output with Low Ripple

-Impact-Resistant Polycarbonate Enclosure

-No load Power Consumption <0.25W

-Limited Power Source

-Certified to UL/EN/IEC60950-1

12 Volt 3.5amp Switching Power Supply Adapter Short Circuit / Overload Protection
